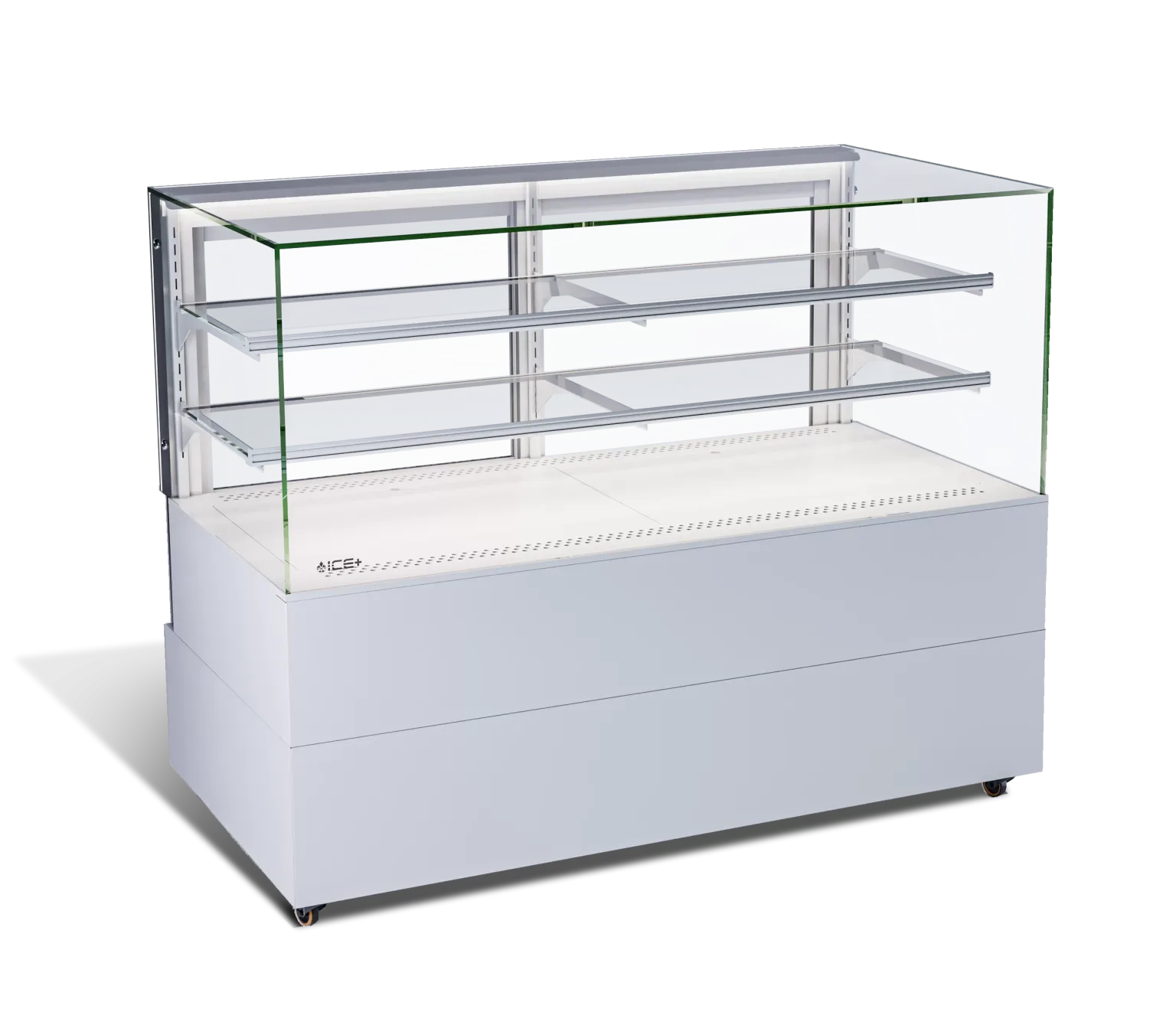

Frameless Refrigerated Display - 90CM
  • Frameless Refrigerated Display - 90CM
  • Frameless Refrigerated Display - 90CM
Frameless Refrigerated Display - 90CM

Frameless Refrigerated Display - 90CM

Ask For Quotation

Frameless Refrigerated Display

Frameless model has been designed to display your products with minimal amount of viewing disturbance. All glass structure are UV welded to give the optimum viewing angle leaving nothing but your products visible to your customers.

Frameless display has been designed to introduce a new concept of display fridges with multiple display options:

- Three (3) Shelf Display
- Two (2) Shelf Display
- One (1) Shelf movable Display
- Base display with refrigerated storage
- Base display only

TECHNICAL PERFORMANCE



LAYOUT Frameless glass display showcase

GLASS TYPE 10 mm single tempered glass welded @ 45 degree angle
SHELF TYPE - Three (3) Glass shelves
- Two (2) Glass shelves
- Base floor + Storage
- Sliding shelf
HANGING SYSTEM Steel shelf holders adjustable every 20 mm.
Thin Aluminum profiles with front product stopper.
(Optional slanted shelf holder)
LIGHTING Interior lighting per shelf
3000k @ 60 LED/M
(Optional 4000k @ 60 LED/ M)
DISPLAY BASE White Corian base with perforated holes
(Optional Corian Colors)
DOOR STRUCTURE Thin Aluminum sliding back doors with wheels to minimize friction
BODY TYPE Electrostatic Galvanized metal sheets
CHASE TYPE Steel chase on 2” Castors
(Optional adjustable legs)
BACK Back Stainless Steel backsplash
CONTROL Digital Electronic Thermostat
CLIMATE CLASS 3
AMBIENT TEMPERATURE 25°C at RH 60%
REFRIGERANT Gas R134A
TEMPERATURE RANGE 2°C to 7°C,
7°C to 12°C
REFRIGERATION TYPE Low noise with dynamic airflow
DRAIN Self evaporating drain
POWER RATING 220 V, 1 PH, 50 HZ
Ranges from 0.3kw to 0.6k

.
