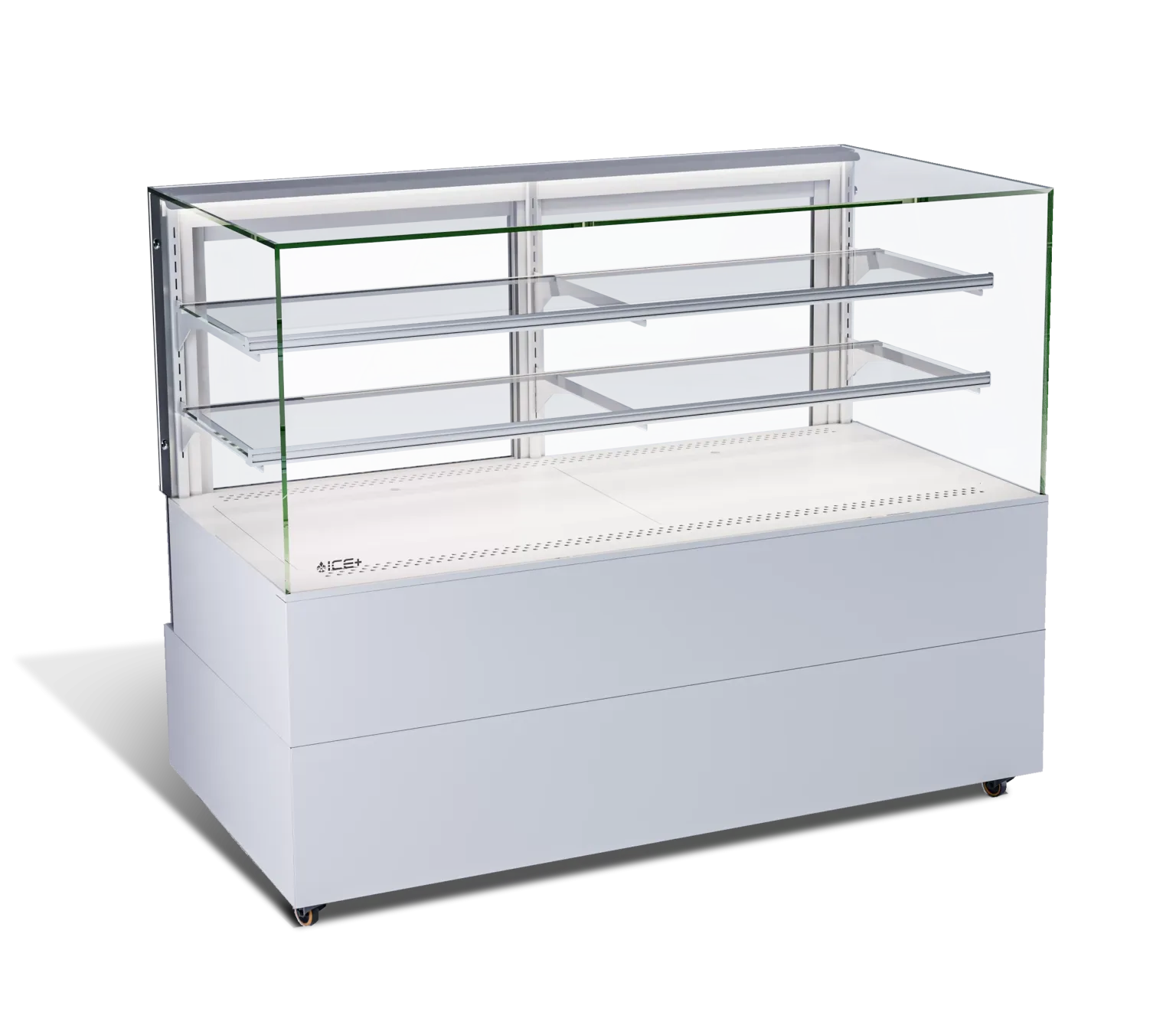

| LAYOUT | Frameless glass display showcase |
||
| GLASS TYPE | 10 mm single tempered glass welded @ 45 degree angle | ||
| SHELF TYPE | - Three (3) Glass shelves - Two (2) Glass shelves - Base floor + Storage - Sliding shelf |
||
| HANGING SYSTEM | Steel shelf holders adjustable every 20 mm. Thin Aluminum profiles with front product stopper. (Optional slanted shelf holder) |
||
| LIGHTING | Interior lighting per shelf 3000k @ 60 LED/M (Optional 4000k @ 60 LED/ M) |
||
| DISPLAY BASE | White Corian base with perforated holes (Optional Corian Colors) |
||
| DOOR STRUCTURE | Thin Aluminum sliding back doors with wheels to minimize friction | ||
| BODY TYPE | Electrostatic Galvanized metal sheets | ||
| CHASE TYPE | Steel chase on 2” Castors (Optional adjustable legs) |
||
| BACK | Back Stainless Steel backsplash | ||
| CONTROL | Digital Electronic Thermostat | ||
| CLIMATE CLASS | 3 | ||
| AMBIENT TEMPERATURE | 25°C at RH 60% | ||
| REFRIGERANT | Gas R134A | ||
| TEMPERATURE RANGE | 2°C to 7°C, 7°C to 12°C |
||
| REFRIGERATION TYPE | Low noise with dynamic airflow | ||
| DRAIN | Self evaporating drain | ||
| POWER RATING | 220 V, 1 PH, 50 HZ Ranges from 0.3kw to 0.6k |
