Frameless Refrigerated Display - 90CM

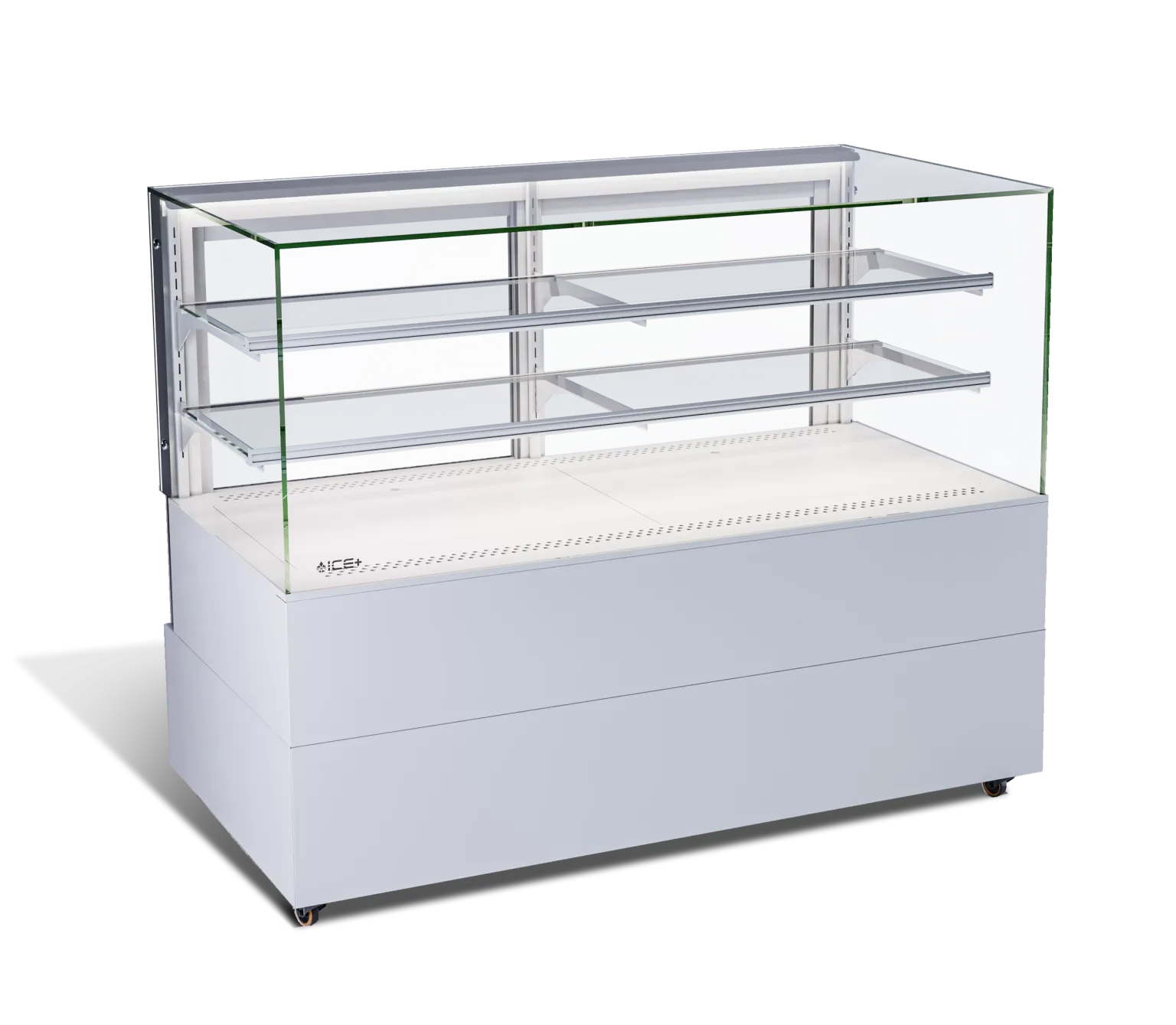

Frameless Refrigerated Display Cabinet

The Frameless Refrigerated Display is engineered for businesses that want their products to do all the talking. With a fully UV-welded, frameless all-glass structure, it eliminates visual obstruction entirely — nothing stands between your products and your customers. Five configurable layout options make it one of the most versatile chilled display cabinets on the market.

Display layout options

Choose the configuration that best suits your display needs:

• 3-shelf display — maximum product tiers for high-volume retail
• 2-shelf display — balanced display for mid-range assortments
• 1 movable shelf display — flexible single-shelf layout for large or tall items
• Base display with refrigerated storage — front display plus chilled storage below
• Base display only — clean minimalist layout for premium product staging

Glass & structure

• 10mm single tempered glass panels UV welded at 45° for a seamless frameless finish
• Stainless steel backsplash for a clean, hygienic interior
• Electrostatic galvanized metal sheet body for long-term durability
• White Corian display base with perforated holes (optional Corian color variants)
• Thin aluminum sliding back doors with low-friction wheel system
• Steel chase on 2" castors for easy repositioning (optional adjustable legs)

Shelving & hanging system

• Steel shelf holders adjustable every 20mm for precise product positioning
• Thin aluminum profiles with front product stopper to prevent items from sliding
• Optional slanted shelf holders for angled product display

Lighting

• Interior LED lighting per shelf — 3000K warm white at 60 LED/m
• Optional 4000K neutral white lighting for a crisper, more clinical presentation

Refrigeration & performance

• Temperature range: 2°C to 7°C or 7°C to 12°C (selectable)
• Climate class: 3 — rated for 25°C ambient at 60% RH
• Refrigerant: R134A
• Low-noise dynamic airflow refrigeration system
• Self-evaporating drain — no manual emptying required
• Digital electronic thermostat for precise temperature control

Power & electrical

• Power supply: 220V, 1 Phase, 50Hz
• Power rating: 0.3kW – 0.6kW depending on configuration

Ideal for

Delis, bakeries, patisseries, supermarkets, convenience stores, hotels, restaurants, and any retail or hospitality setting where premium product presentation and reliable refrigeration are essential.
