Key Features & Benefits
- High-Performance Yield: Smoothly handles heavy dynamic workloads, delivering a blast chilling cycle performance of +3°C yielding 23 kg and an intense shock freezing action of -18°C yielding 12 kg.
- Universal Grid Compatibility: Crafted with a premium internal structure that perfectly holds up to 5 standard Gastronorm GN 1/1 pans or 600x400 mm pastry trays.
- Optimized Cold Air Distribution: Outfitted with an exact 70 mm air gap between storage levels to guarantee unhindered, rapid cold airflow dispersal over all food profiles.
- Standard Electronic Command Panel: Features precise digital display controls for reliable and repeatable chilling and freezing program execution.
- Eco-Responsible Gas: Fully engineered with sustainable tech frameworks running efficiently on low-impact R290 green refrigeration cooling gas.
Technical Specifications

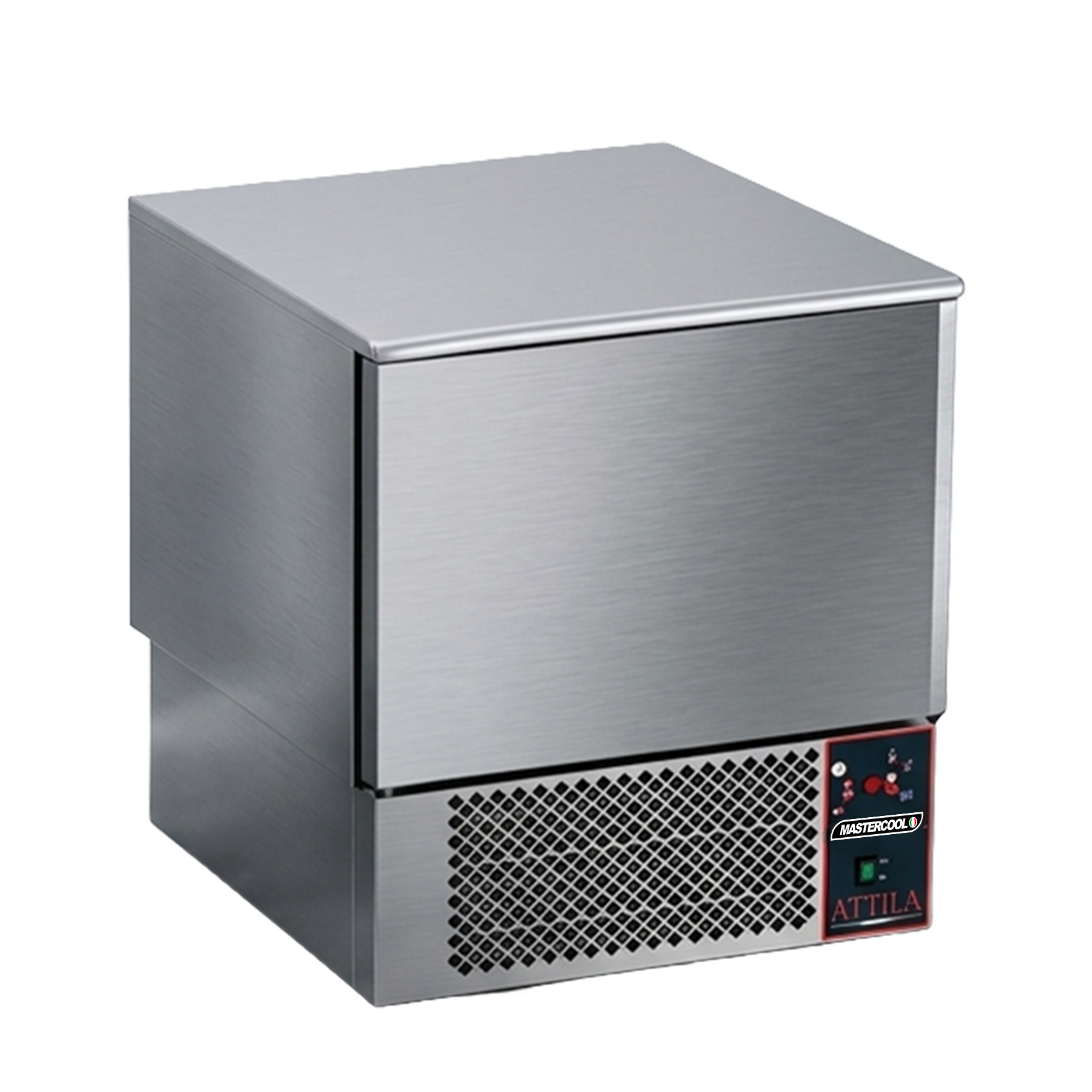

| Technical Parameter | Mastercool Attila ATT05 Specifications |
|---|---|
| Control Panel Interface | Standard Electronic Digital Display Panel |
| Tray / Loading Capacity | 5 Trays or Grids (GN 1/1 or 600x400 mm) |
| External Dimensions (WxDxH) | 750 mm x 750 mm x 890/910 mm |
| Dimensions with Wheels | 750 mm x 750 mm x 940 mm |
| Internal Chamber Size (WxDxH) | 610 mm x 430 mm x 390 mm |
| Total Internal Volume | 100 Liters |
| Blast Chilling Yield (+3°C) | 23 kg of food payload |
| Shock Freezing Yield (-18°C) | 12 kg of food payload |
| Starting Electrical Input | 1300 W / 7.5 A |
| Steady State Electrical Input | 600 W / 4.7 A |
| Cooling Capacity (-30°C Evap. Temp) | 880 W |
| Working Temperature Range | +3°C to -18°C |
| Refrigerant Cooling Gas | R452A - R455A - R290 Eco-Gas Option |
| Power Supply Configuration | 220/240 V - 1 Phase - 50Hz (60 Hz available on request) |
