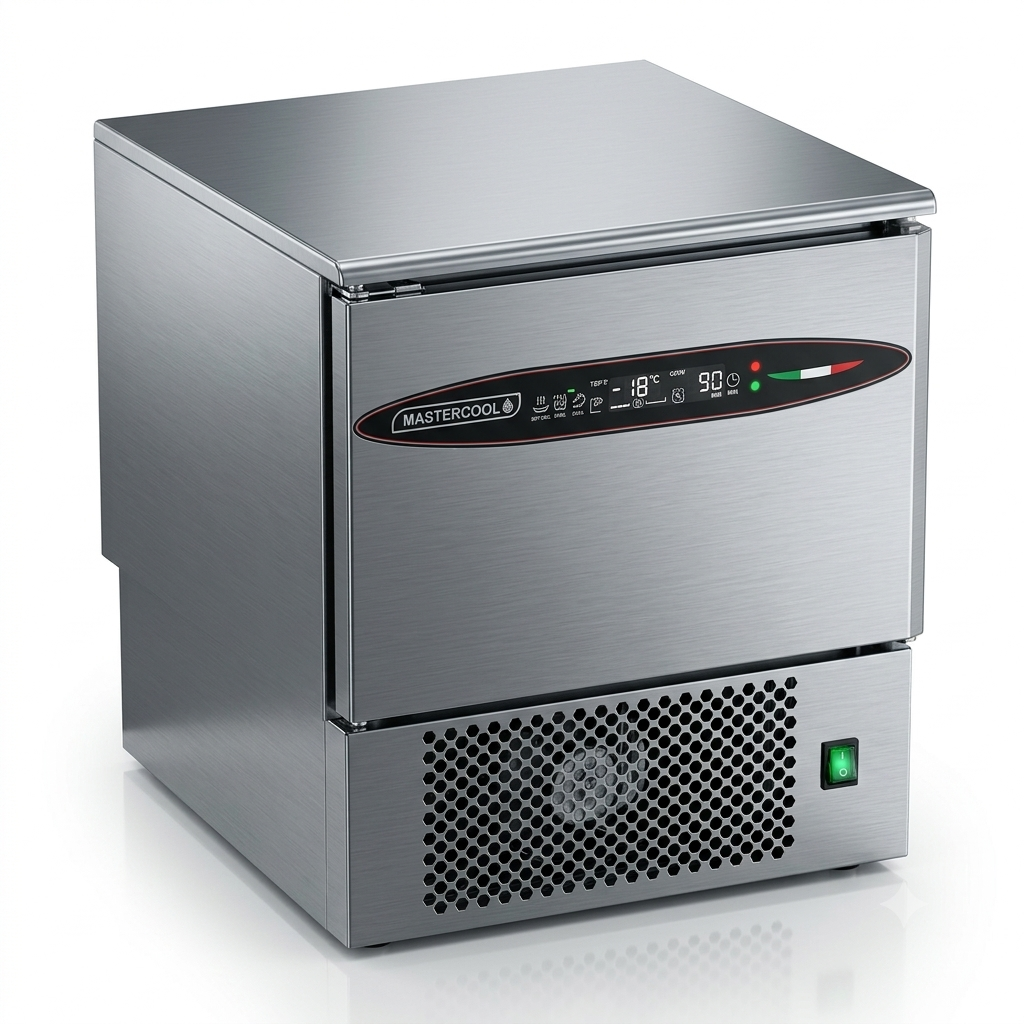

Mastercool Attila ATT05_TH Premium 5-Tray Touch Screen Blast Chiller & Shock Freezer
Experience the next generation of kitchen workflow automation with the premium Mastercool Attila ATT05_TH Touch Screen Blast Chiller and Shock Freezer. Outfitted with an advanced, user-friendly touch-screen graphic control interface, this intelligent 5-tray stainless steel unit allows chefs to easily monitor and customize cooling programs for complex culinary procedures. It safely drops hot food core parameters from +90°C down to +3°C or shock freezes down to -18°C, providing unmatched precision, speed, and absolute HACCP compliance.
Key Features & Benefits
- Smart Touch-Screen Interface (TH): Intuitive display makes selecting soft chilling, hard chilling, and shock freezing cycles effortless, reducing user operating error.
- High-Performance Yield Capabilities: Perfectly manages heavy catering demands, delivering a blast chilling cycle performance of +3°C yielding 23 kg and an intense shock freezing action of -18°C yielding 12 kg.
- Universal Grid Compatibility: Crafted with a premium internal structure that perfectly holds up to 5 standard Gastronorm GN 1/1 pans or 600x400 mm bakery/pastry trays.
- Optimized Dynamic Core Penetration: Uses 70 mm shelf gaps and uniform cold air circulation patterns to ensure rapid thermal relief across all food surfaces.
- Eco-Responsible Gas Design: Fully engineered with sustainable tech frameworks running efficiently on low-impact R290 green refrigeration cooling gas.
Technical Specifications
| Technical Parameter | Mastercool Attila ATT05_TH Touch Specifications |
|---|---|
| Control Panel Interface | Premium Graphic Touch-Screen User Interface Panel (TH/Touch Variant) |
| Tray / Loading Capacity | 5 Trays or Grids (GN 1/1 or 600x400 mm) |
| External Dimensions (WxDxH) | 750 mm x 750 mm x 890/910 mm |
| Dimensions with Wheels | 750 mm x 750 mm x 940 mm |
| Internal Chamber Size (WxDxH) | 610 mm x 430 mm x 390 mm |
| Total Internal Volume | 100 Liters |
| Blast Chilling Yield (+3°C) | 23 kg of food payload |
| Shock Freezing Yield (-18°C) | 12 kg of food payload |
| Starting Electrical Input | 1300 W / 7.5 A |
| Steady State Electrical Input | 600 W / 4.7 A |
| Cooling Capacity (-30°C Evap. Temp) | 880 W |
| Working Temperature Range | +3°C to -18°C |
| Refrigerant Cooling Gas | R452A - R455A - R290 Eco-Gas Option |
| Power Supply Configuration | 220/240 V - 1 Phase - 50Hz (60 Hz available on request) |
