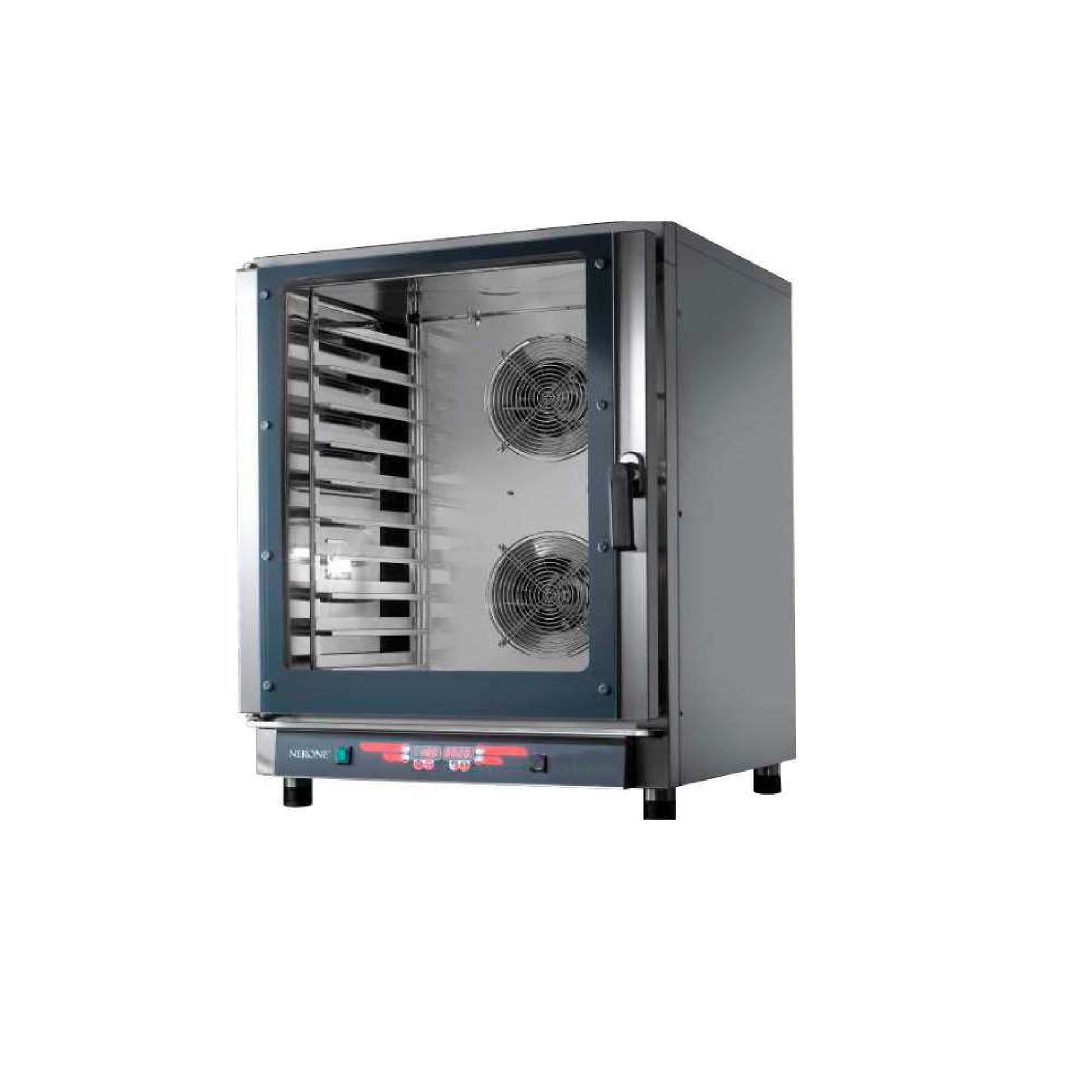

Scale up your kitchen production with the high-capacity Mastercool MID 10 Commercial 10-Tray Digital Convection Oven. Built to withstand the rigorous demands of large-scale commercial bakeries, busy restaurants, high-volume gastronomy lines, and pastry houses, this powerhouse oven provides a massive 10-tray setup with flexible direct water injection controls. Operated by an advanced digital control panel, it leverages a heavy-duty Double Fan (Doppia Ventola) reverse system and 12.7 kW of heating power to ensure perfectly even baking cycles from the top tray down to the bottom.
Key Performance & Smart Features
- High-Volume 10-Tray Configuration: Dual-engineered loading racks comfortably accommodate 10 standard pastry sheets (600x400 mm) or Gastronorm GN 1/1 pans simultaneously.
- Intelligent Reversing Double Fan: Equipped with a heavy-duty dual fan system (Doppia Ventola) featuring automated reverse-gear operation to ensure completely uniform air and heat displacement.
- Automated Humidity Injection (H₂O): Advanced programmable moisture injection creates the ideal steamy environment required for professional bakery goods and crust perfection.
- Integrated Core Probe Cooking: Includes a premium internal core food testing probe (Sonda al Cuore) with specialized Delta T measurement parameters for accurate gastronomy cooking.
- Digital Control Dashboard: Sleek front-facing electronic interface supports custom programmable recipe profiles, multi-stage cooking adjustments, and continuous status tracking.
- Robust Door Architecture: Built standard with an easy-to-use Left-Hinged door configuration (Porta a bandiera SX), with an optional Right-Hinged door (Porta a bandiera DX) available on H₂O variants.
Technical Specifications
| Technical Parameter | Mastercool MID 10 Specification Value |
|---|---|
| Control Version Type | Electric - Digital Control Interface Dashboard |
| Tray / Loading Capacity | 10 Trays or Grids (600x400 mm or GN 1/1) |
| Distance Between Internal Trays | 80 mm |
| Inner Oven Chamber Size (WxDxH) | 680 mm x 480 mm x 840 mm |
| External Equipment Dimensions (WxDxH) | 840 mm x 920 mm x 1155 mm |
| Total Electrical Power Input | 12.7 kW |
| Voltage Configuration | 220-240 V / 380-415 V 3/3+N (50/60 Hz) |
| Package Shipping Dimensions (WxDxH) | 880 mm x 955 mm x 1300 mm |
| Net Weight / Gross Weight | 125 kg Net / 150 kg with Shipping Package |
Available Model Variant Codes
| Product Code | Technical Description Profiles |
|---|---|
| FEDL10NEMIDV | 10 Pans/Grids 600x400 mm or GN 1/1, WITHOUT H₂O injection, with water drain - Left Hinged Door |
| FEDL10NEMIDVH2O | 10 Pans/Grids 600x400 mm or GN 1/1, WITH H₂O injection and water drain - Left Hinged Door |
| FEDL10NEMIDVH2ODX | 10 Pans/Grids 600x400 mm or GN 1/1, WITH H₂O injection and water drain - Right Hinged Door (Optional) |
