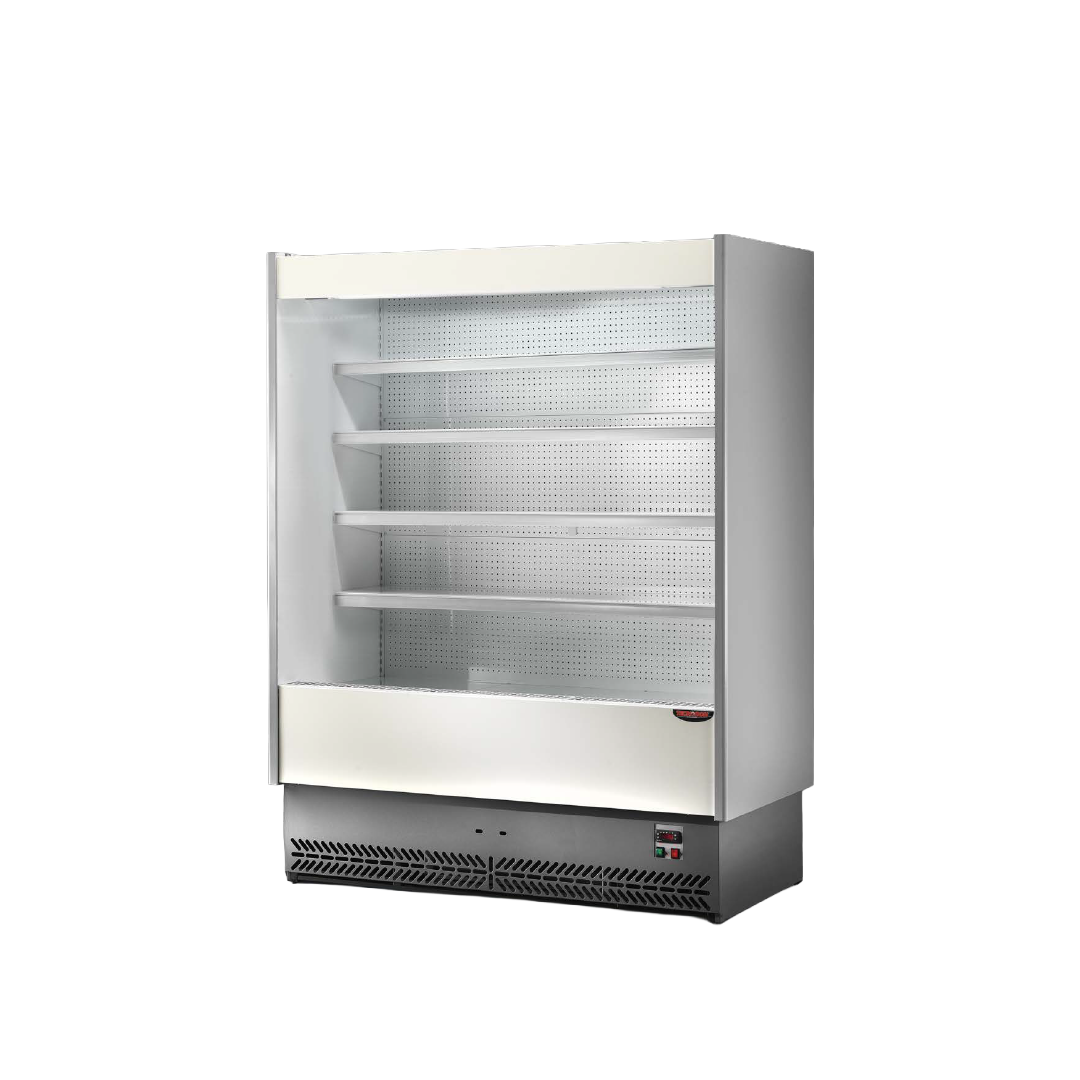

Optimize your retail grocery layout with the Mastercool Vulcano SC Refrigerated Multideck Display. Specially built featuring heavy-duty insulated blind side walls (Spalle Cieche), the Vulcano SC series is designed for superior thermal retention and seamless multiplexing side-by-side configurations. Offering a broad vertical presentation capability with an ultra-compact footprint, this Italian-engineered open-front chiller is the premier choice for professional supermarkets, convenience networks, and butcher shops requiring maximum cooling performance.
Key Features & Benefits
- Insulated Blind Side Walls: Solid side-wall panels provide maximum thermal insulation, preventing ambient air leakages and dropping overall store energy costs. Perfect for line-ups.
- Balanced Ventilated Refrigeration: High-efficiency forced-air circulation infrastructure paired with an electronic control board guarantees consistent safe temperatures across all presentation levels.
- Eco-Friendly Defrosting: Smart off-cycle auto-defrost system (with dedicated electric defrost parameters built into meat configurations) lowers power draw over continuous operations.
- After-Hours Energy Blind: Built-in manual slow-rolling night curtain safely seals off the open-front area during closing hours to slash electricity consumption.
- Adaptable Merchandising Layout: Outfitted with adjustable, non-toxic white-painted steel shelving layers, complete with built-in price-tag scanner rails.
Specialized Temperature Versions
- SL Variant (Dairy, Delicatessen & Drinks): Operates safely at +3°C to +5°C with 4 structural shelves. Engineered specifically for dairy items, pre-packaged cheeses, sandwiches, and beverages.
- FV Variant (Fruit & Vegetables): Operates evenly at +6°C to +8°C with 3 specialized inclined display shelves and an integrated upper tilted product mirror (Available for Vulcano SC 80).
- C Variant (Fresh Prepacked Meat): Operates at precision low ranges of 0°C to +2°C, complete with 4 reinforced shelves and an aerodynamic air deflector layout for maximum fresh food protection.
Technical Specifications
| Technical Parameter | Vulcano SC 60 Series | Vulcano SC 80 Series |
|---|---|---|
| Side Wall Configuration | Solid Insulated Blind Side Walls (Spalle Cieche) | Solid Insulated Blind Side Walls (Spalle Cieche) |
| Cabinet Total Depth | Slimline 600 mm | Standard 765 mm |
| Cabinet Full Height | 1984 mm (2080 mm with wheels) | 2030 mm (2130 mm with wheels) |
| Available Modular Widths | 60, 80, 100, 120, 140, 150, 187 cm | 100, 120, 140, 150, 187, 200, 250, 300 cm |
| Refrigeration Mechanics | Ventilated / Forced Air System | Ventilated / Forced Air System |
| Eco Gas Refrigerant | R290 / R452A (According to region specifications) | R290 / R452A (According to region specifications) |
| Climate Rating | Climate Class 3 (25°C Ambient / 60% Relative Humidity) | Climate Class 3 (25°C Ambient / 60% Relative Humidity) |
